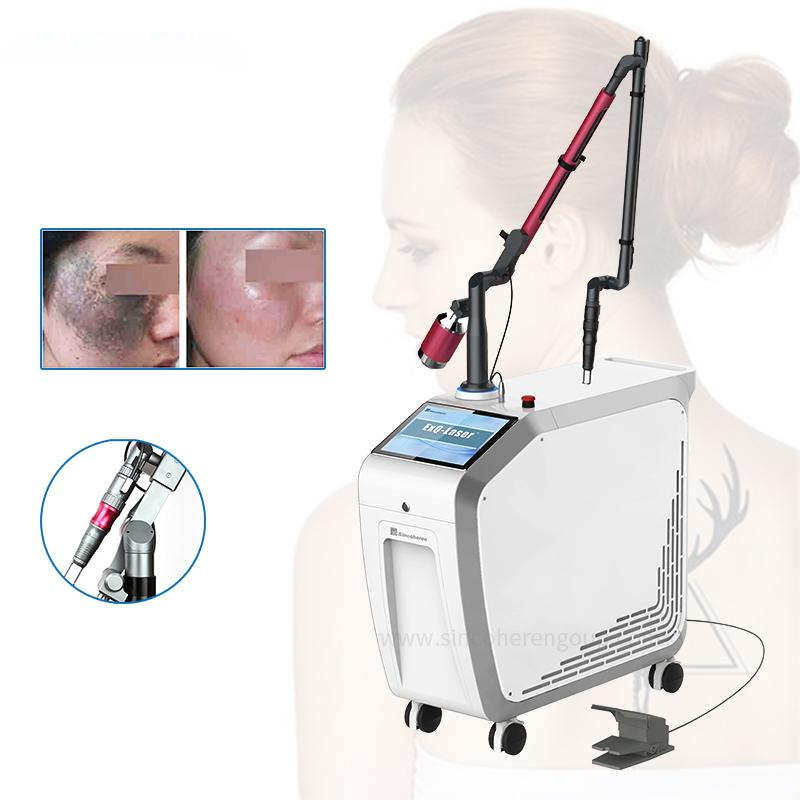

Introduction |

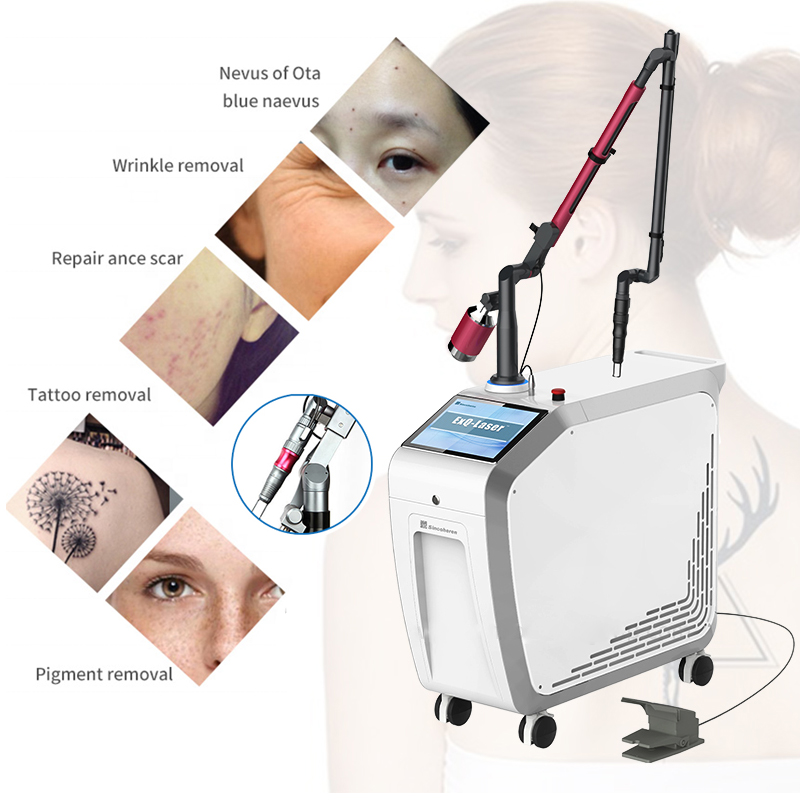

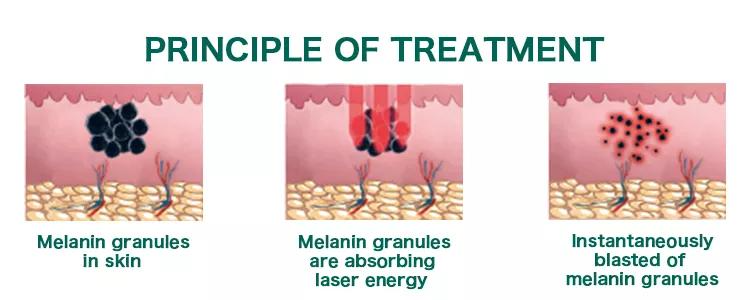

Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser. Therapy system lies in selective photothermolysis with melanin as the chromophore.
Q-Switched Nd:YAG has higher Peak power and nanoseconds-level pulse width.Melanin in melanophore and cuticle formed cells have short hot relaxation time. lt could immediately make small selectively energy absorbed granules (tattoo pigmentand melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Specification
|
Laser type
|
High Energy Q-Switched Nd:Yag
|
|
Wavelength
|
1064nm/532nm
|
|
ulse Width
|
5ns
|
|
Pulse Energy
|
1000mj/500mj
|
|
Pulse Energy Range
|
100-1000mJ/100-500mJ
|
|
Frequency
|
5Hz
|
|
Spot Size
|
2-10mm Adjustable
|
|
Fluence
|
1.3-32J/cm² / 0.6-16J/cm²
|
Advantage

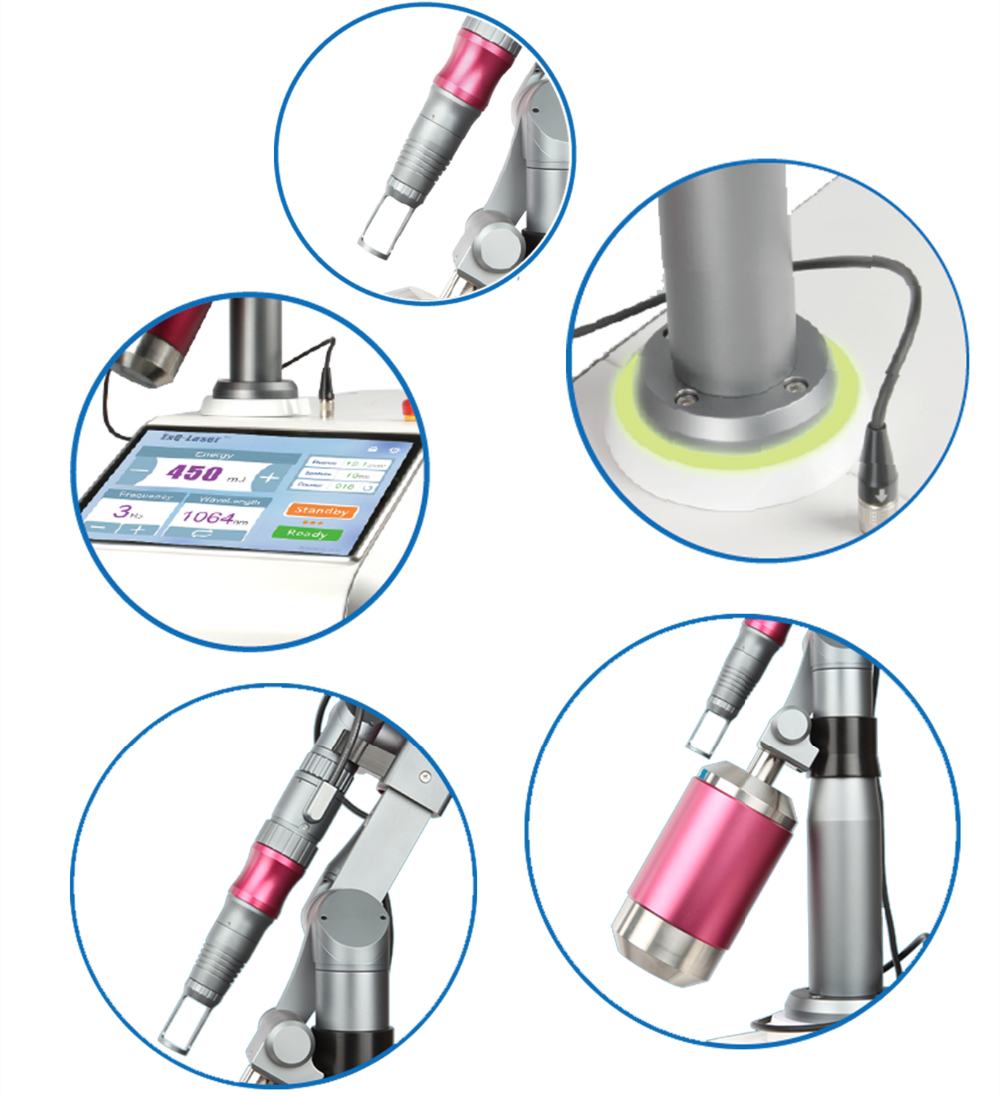

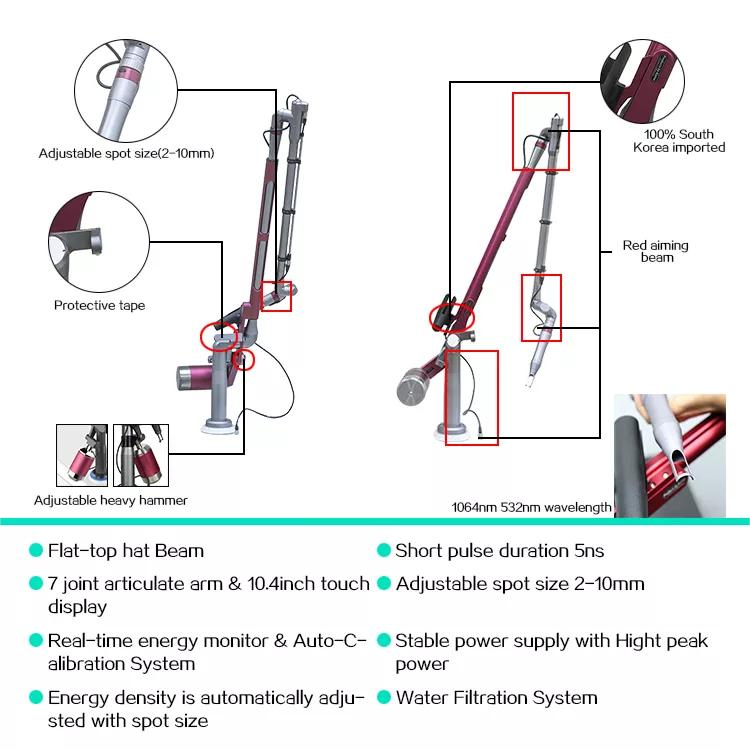

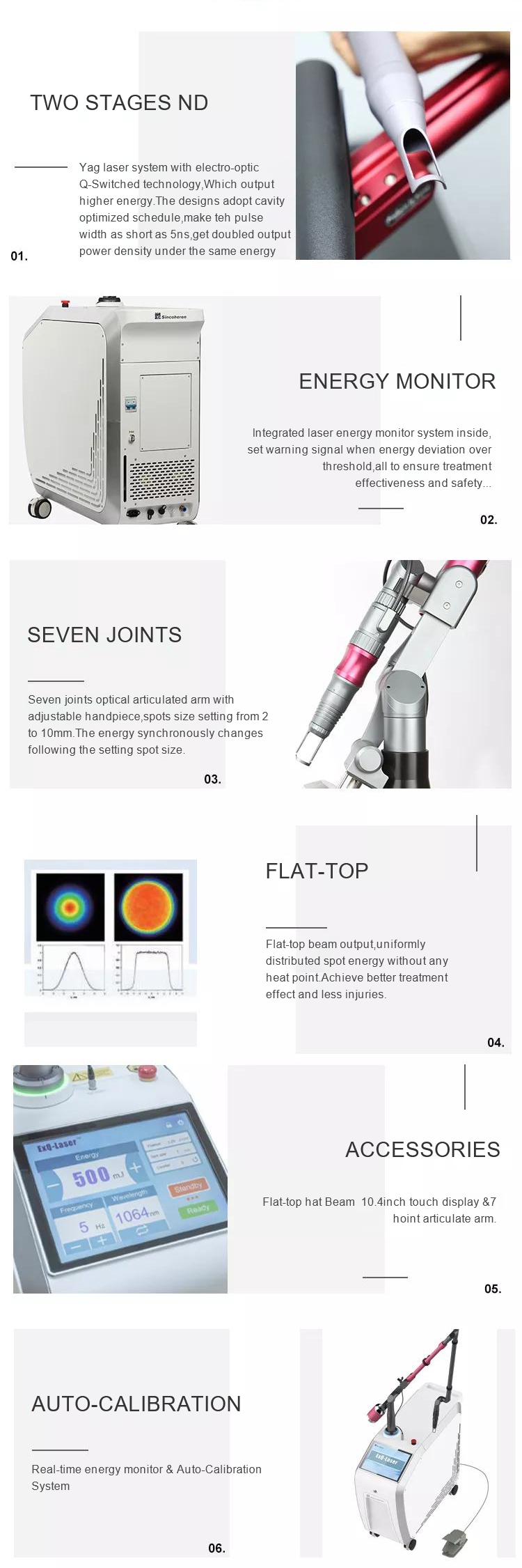

• Flat-top hat Beam • 10.4inch touch display & 7 joint articulate arm
• Real-time energy monitor & Auto-Calibration System
• Energy density is automatically adjusted with spot size
• Short pulse duration 5ns
• Adjustable spot size 2-10mm
• Stable power supply with High peak power
• Water Filtration System
Before and After
