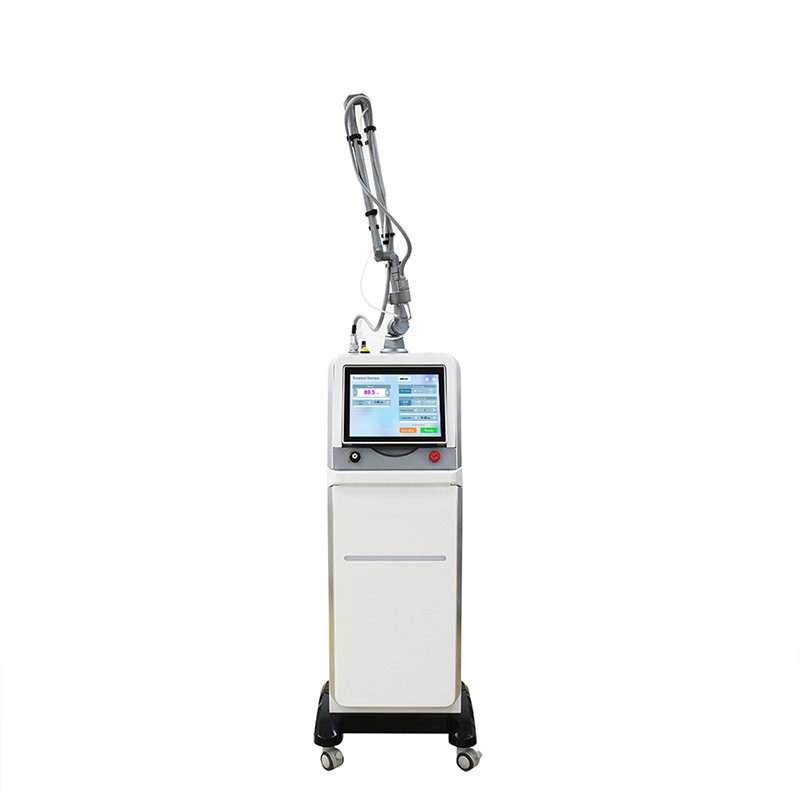

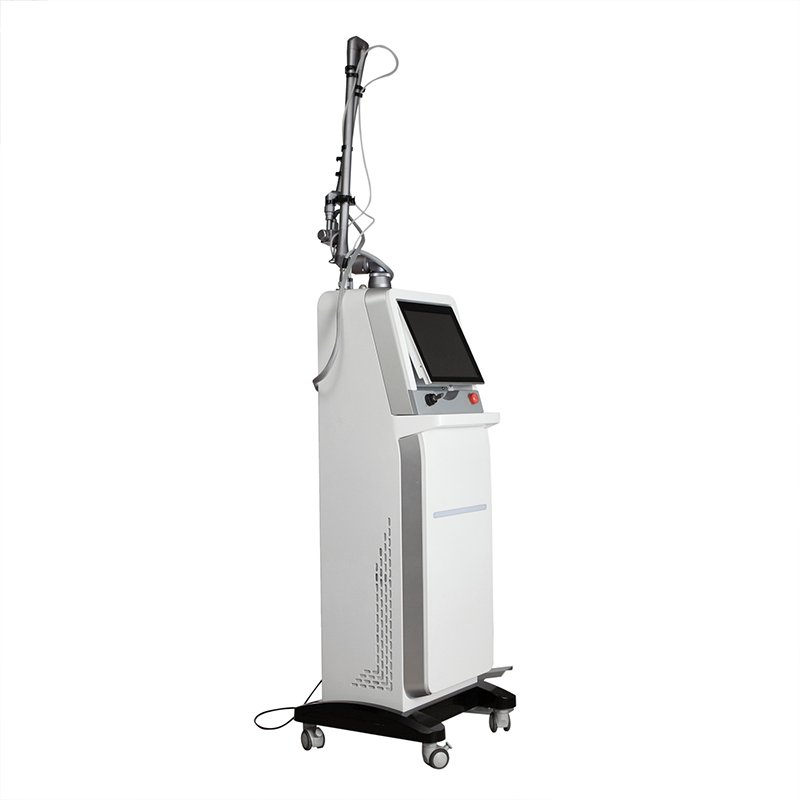

FDA approved Fractional Co2 Laser Machine

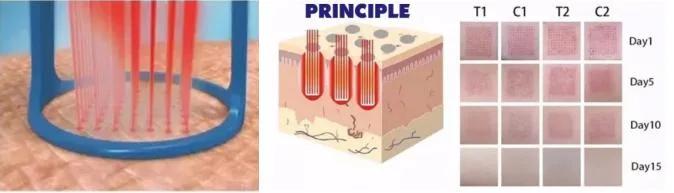

The CO2 laser produces a beam of infrared light with the principal wavelength bands centering around 9.4 and 10.6 micrometers. With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.c

Introduction

Application

Skin Resurfacing

Skin Tightening

Scar Removal: Acne scars, burnt scars and surgery scars, etc

Vaginal Treatment

Wrinkle Removal

Acne Treatment

Pigment Removal

Specification

Laser Type	CO2 Laser
Style	Stationary
Type	Laser
Certification	FDA,CE, ISO13485
Feature	Pigment Removal, Skin Tightening, Acne Treatment, Wrinkle Remover, Skin Rejuvenation, Pigmentation Correctors, Scar Removal, Vaginal Tightening
Application	For Commercial
After-sales Service Provided	Free spare parts, Online support, Video technical support
Warranty	12 months
Laser Type	RF-excited CO2 laser
Wavelength	10.6μm
Laser Average Power	CW:0-30W SP:0-15W
Laser Peak Power	CW:30W SP:60W
Keyword:	Co2 Fractional Laser Vaginal
Spot Size	0.5mm
Scan Shapes	Circular / Ellipse / Square / Triangle / Hexagon
Scan Size	Up to 20mmx20mm
LCD screen	12.1 inch
Micro Pulse Energy	5MJ ~ 100 MJ

Advantages

* USA 510K Approved
1. More Than 20 types Output patterns .The requirements of different patientscan be satisfied.
2. Continuous, super pulse, fractional different Operation Modes, There is a wider use in clinical application.
3. Focal spot diameter and interval are adjustable. Patient’s unique needs can be met during treatment.
4. The best USA RF laser tube, Stable performance, high effective, No consumable costs

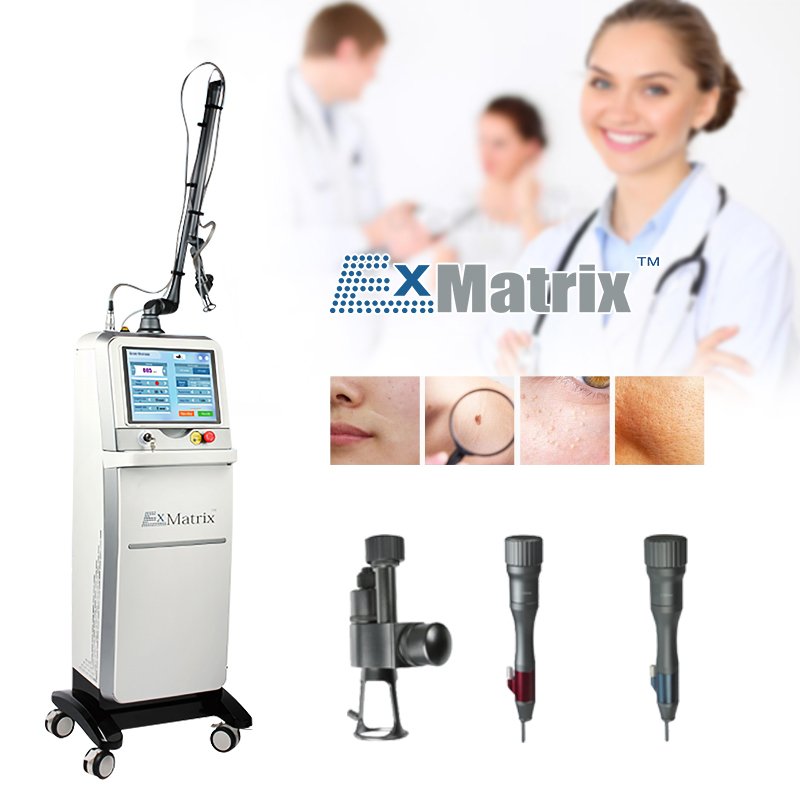

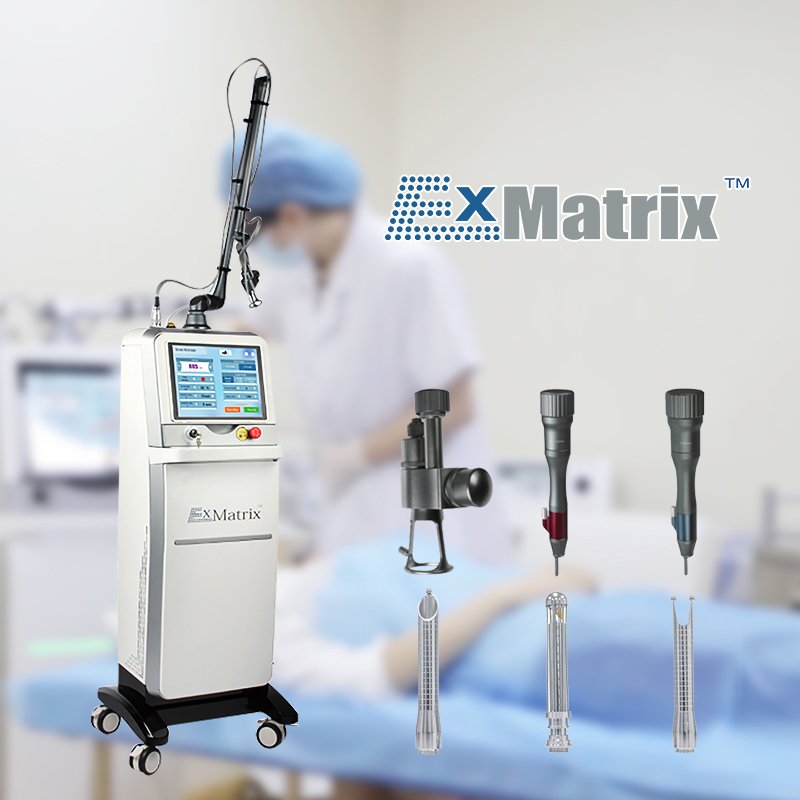

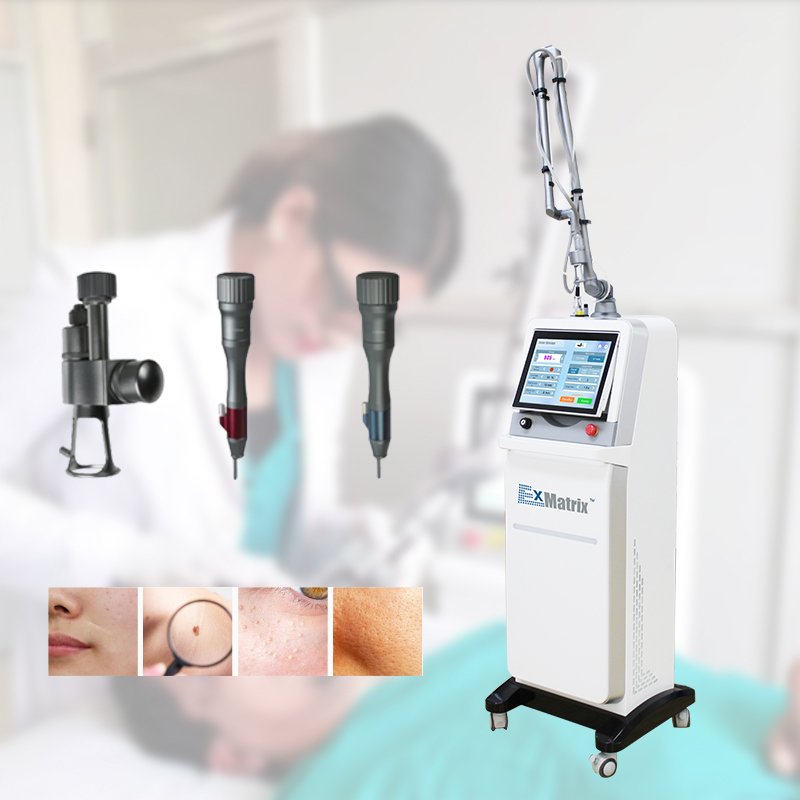

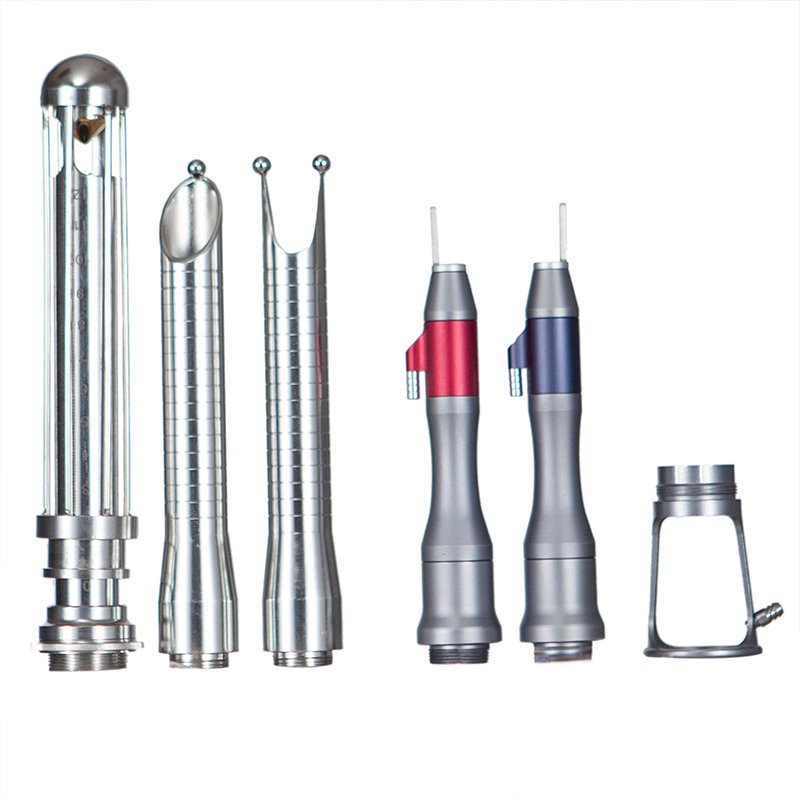

5. Easy to disassemble the hand piece and hang in the machine

6. Safety Protection with automatic alarm.
7. Easy and fast treatment, no down time.
8. No pigmentation and depigmentation of skin, not need extra consumable.

Before and After
