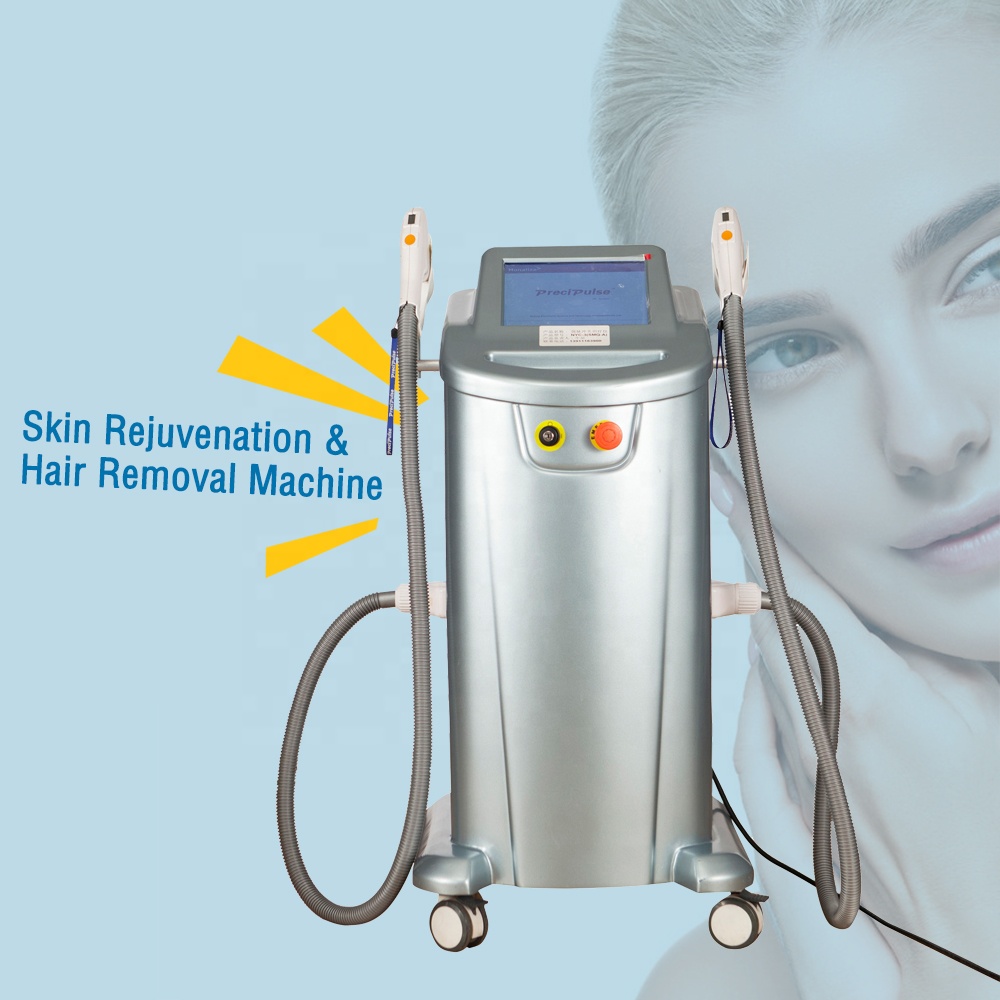

Introduction |
Advantage
*PreciPulse, accurate energy output (deviation <5%)
*3 treatment heads: HR; SR; VR

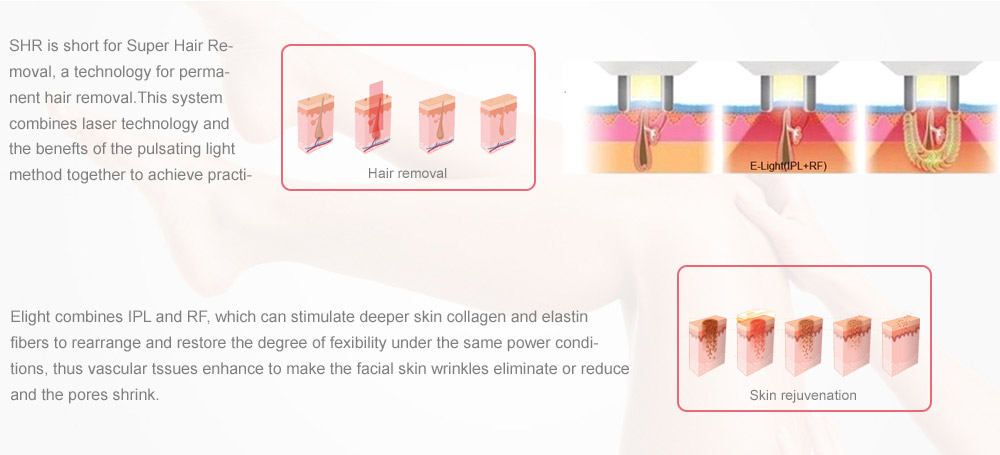

*3 treatment modes, traditional IPL, FP (FlY POINTS) mode, SHR mode for different diseases
*2000W IPL power supply system, discharge frequency 1Hz
*Strong cooling system and 100W power guarantees continuous working for one hour and a half

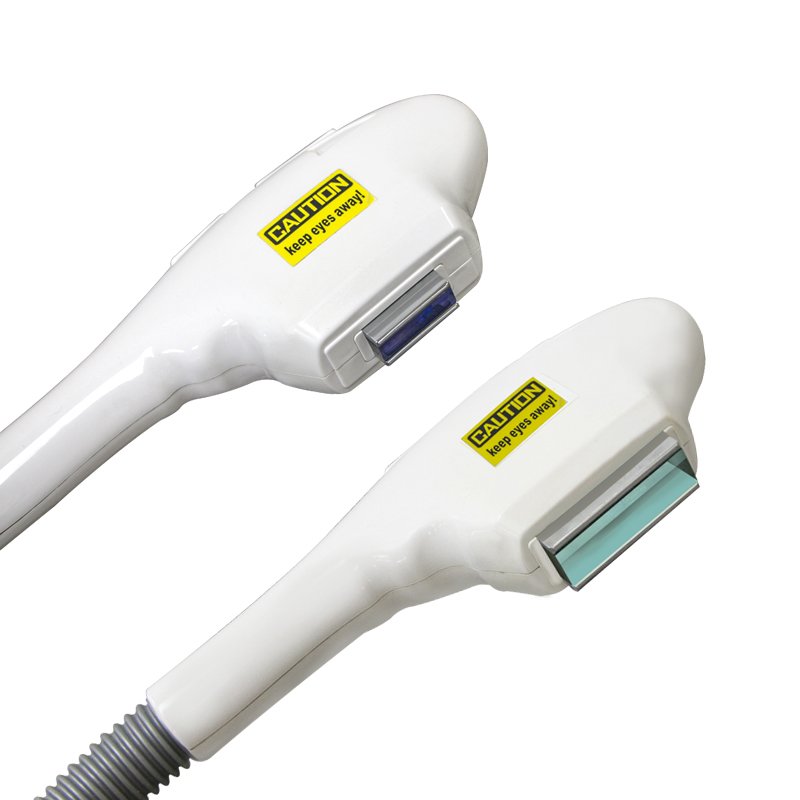

*Mini and delicate treatment hand Piece, easy to output
*TDK-Lambda switching power supply system
*USB reserved connector for future upgrading
Specification
|
Light source
|
Xenon lamp
|
|
Spectrum
|
HR:630-1200nm, SR:560-1200nm, (VR:430-1200nm)
|
|
Fluence
|
HR: 5-45J/cm2; SR: 5-40J/cm2
|
|
Pulse duration
|
2-9.9ms for IPL mode
|
|
Pulse delay
|
5-60ms for IPL mode
|
|
Frequency
|
1-10Hz for SHR
|
|
Pulse duration
|
2-10ms for SHR
|
|
Repetition rate
|
2-10 for FP
|
|
LCD touch screen
|
10.4 inch
|
|
Spot size
|
16*57mm2 for HR, 8*34mm2 for SR
|
|
Cooling
|
Semi conductor, water and air cooling
|
|
Skin cooling
|
Crystal skin contact cooling
|
|
Power source
|
110-240VAC, 50-60Hz
|
